Electro Static Discharge Safe Soldering Station w/ Dig Disp

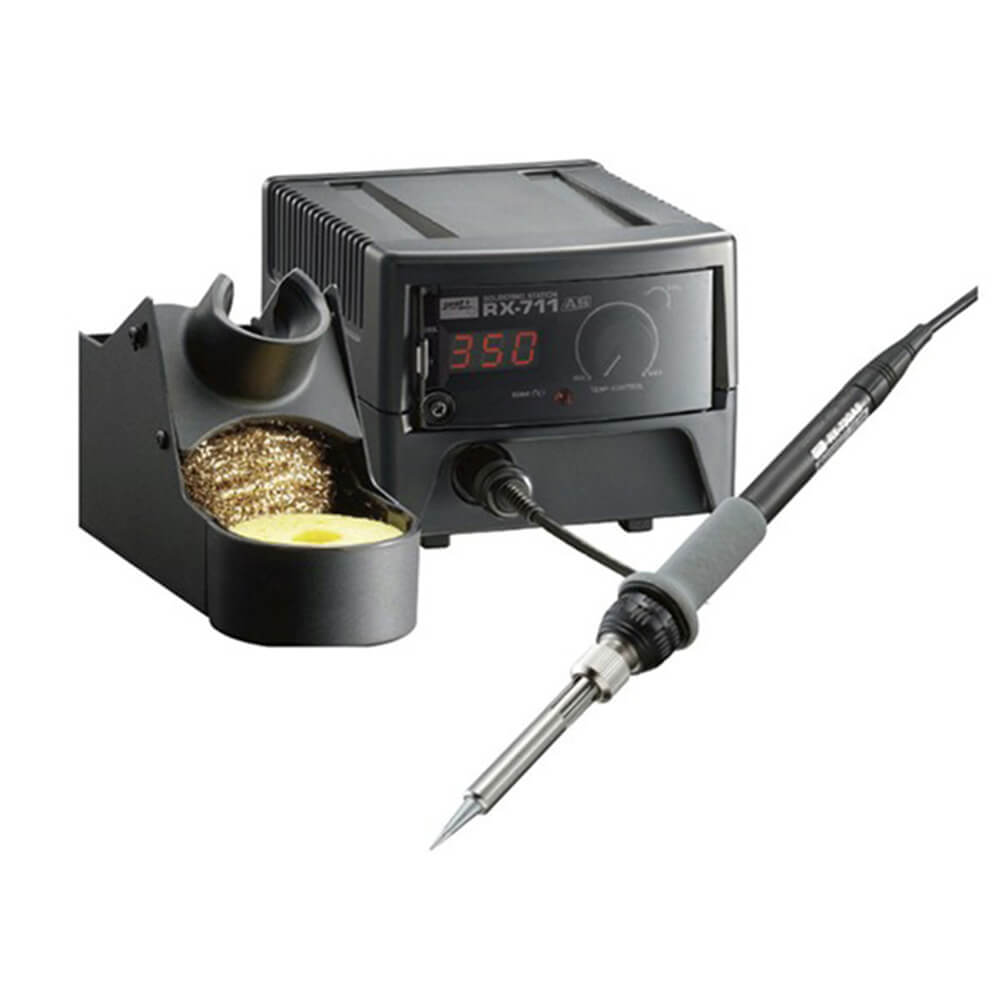

The RX-711AS soldering station is a precision, Japanese manufactured instrument with excellent temperature stability and anti-static characteristics.

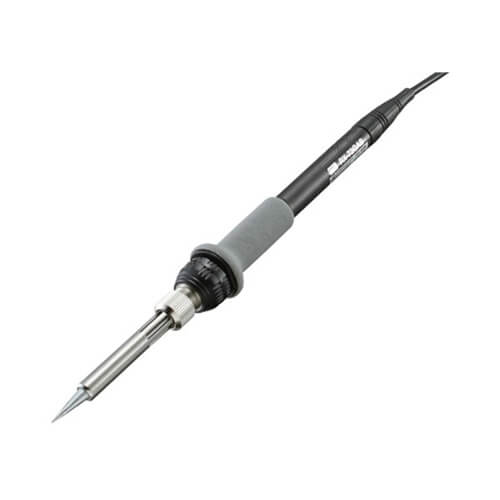

The light weight soldering pencil has a grounded tip and incorporates a ceramic heater with an integral temperature sensor. The sensor provides precise tip-temperature information to the heater controller which maintains the selected heat setting with a high degree of accuracy. Temperature stability is further enhanced by designing the heater to actually fit within a matching recess in the tip. This allows faster heat transfer and therefore better tip-temperature recovery during heavy soldering. The soldering pencil is fitted with a silicon rubber grip for added handling precision and a 1.1 metre long silicone sheathed cord attaches to the console controller via a 5 pin DIN connector. The silicone cord is incredibly supple.

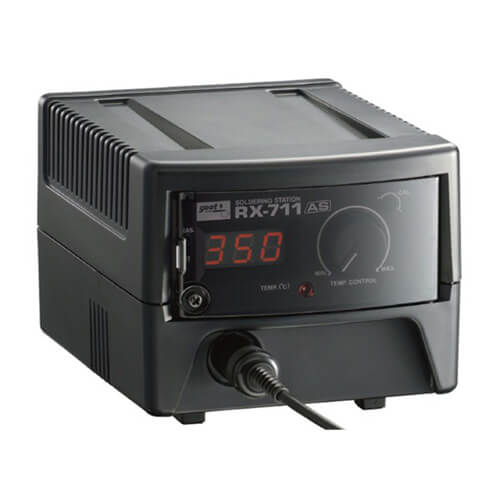

The control panel includes the digital temperature display panel, a rotary temperature control, calibration control and a display changeover switch to display either the desired or actual tip temperature. The panel is secured behind a darkened see-through cover which prevents accidental temperature changes but can be easily accessed when required.

• Safety approval number QASTE4930.
• 230-240VAC supply voltage
• 24VAC output voltage
• 65 Watt capacity heater
• 200 - 480 Degrees C temperature range
• +-3 Degrees C temperature hysteresis
• 1.1Mtr iron cable
• 1.3Mtr mains cable
• 0.5mm tip supplied

REPLACEMENT TIPS/SPONGE

• Cat. TS-1441 0.5mm tip as supplied with iron
• Cat. TS-1442 0.2mm tip
• Cat. TS-1445 replacement sponge

Product Specifications

• Temperature display : LCD
• Temp selection method : Dial
• Removable/Replacable Pencil : true
• Pencil Voltage : 24.0V
• Analogue or Digital? : Digital
• Length : 146.0mm
• Width : 115.0mm
• Height : 98.0mm
• Cable length : 1.1m
• Mains Voltage Range : 240.0V
• Rated for AU Mains : true
• Soldering iron type : Soldering Station
• Soldering Power Rating : 65.0W
• Temperature : 200.0 Degrees C, 480.0 Degrees C
• Temperature Regulated : true
• Spare Tips Available : true
• Alternate Tips Available : true
• ESD Iron : true
• Lead free iron : true
• Fitting on Iron : Collar

• Length : 25.6 cm
• Width : 21.6 cm
• Height : 14.4 cm
