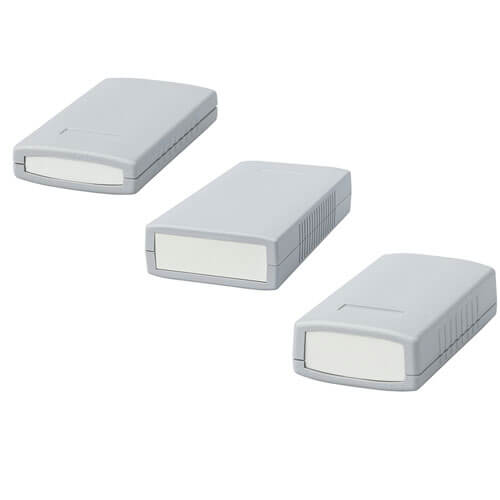

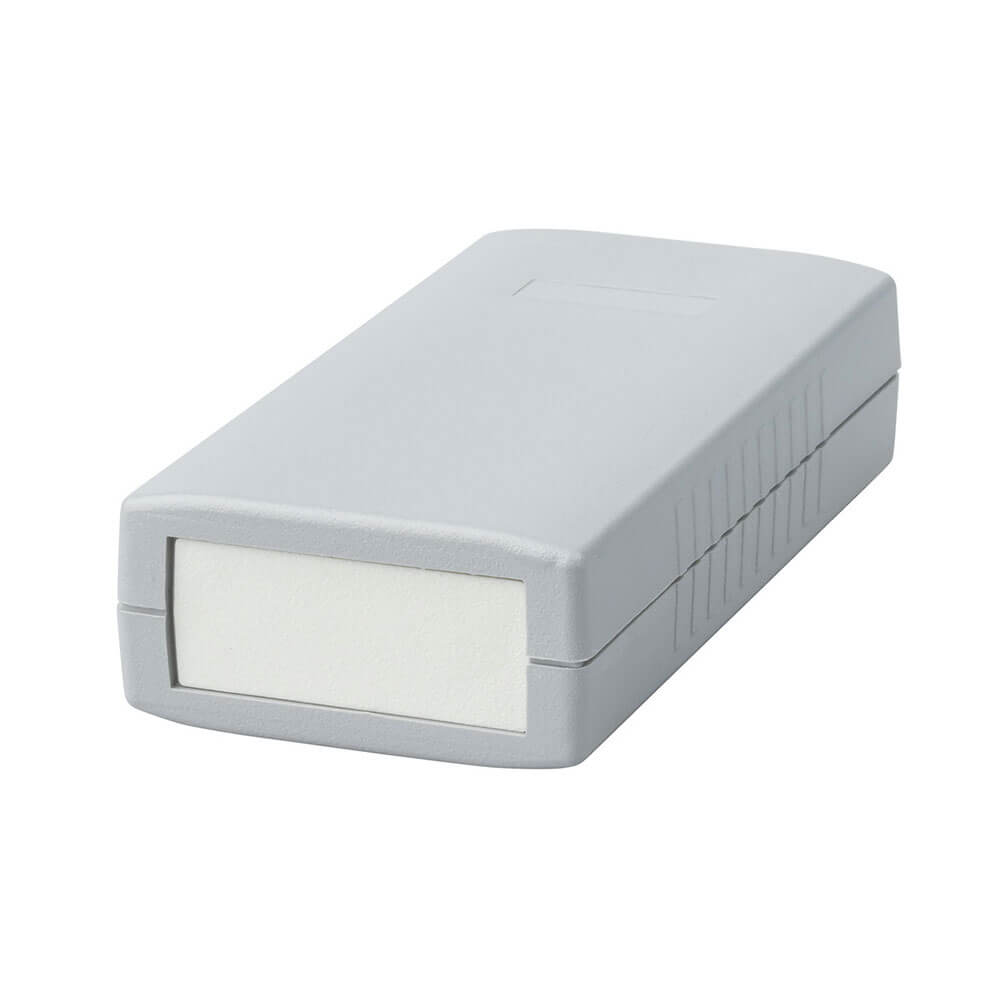

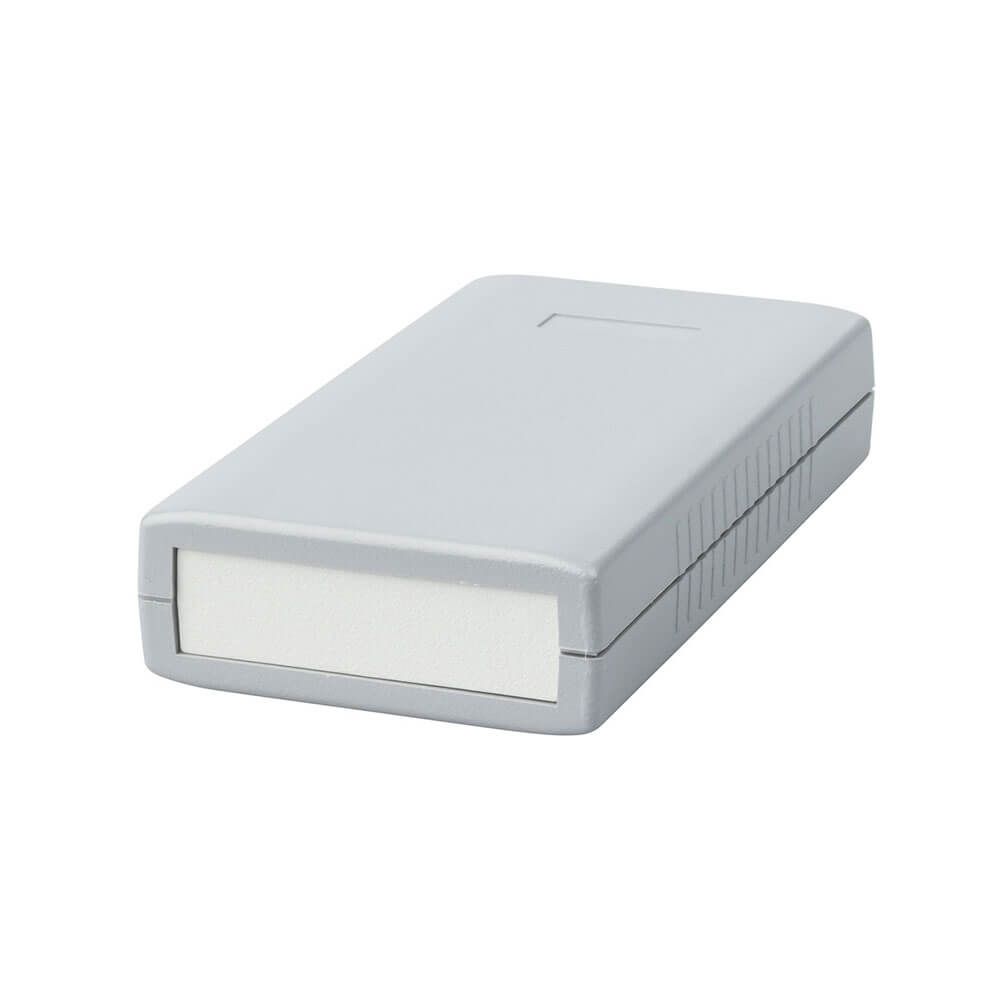

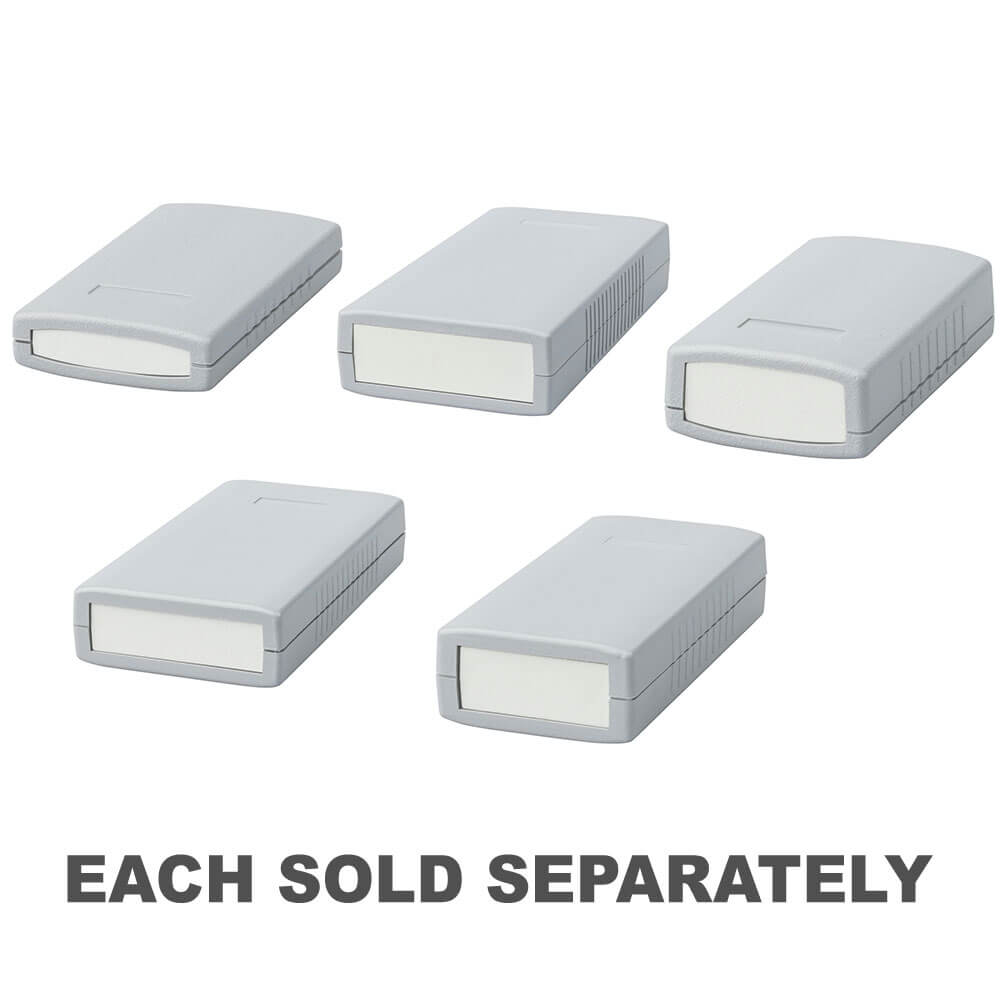

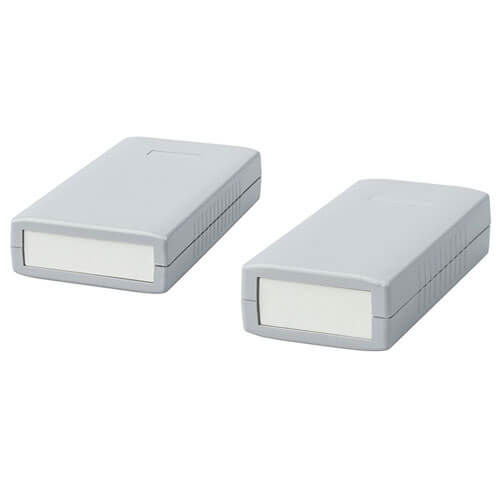

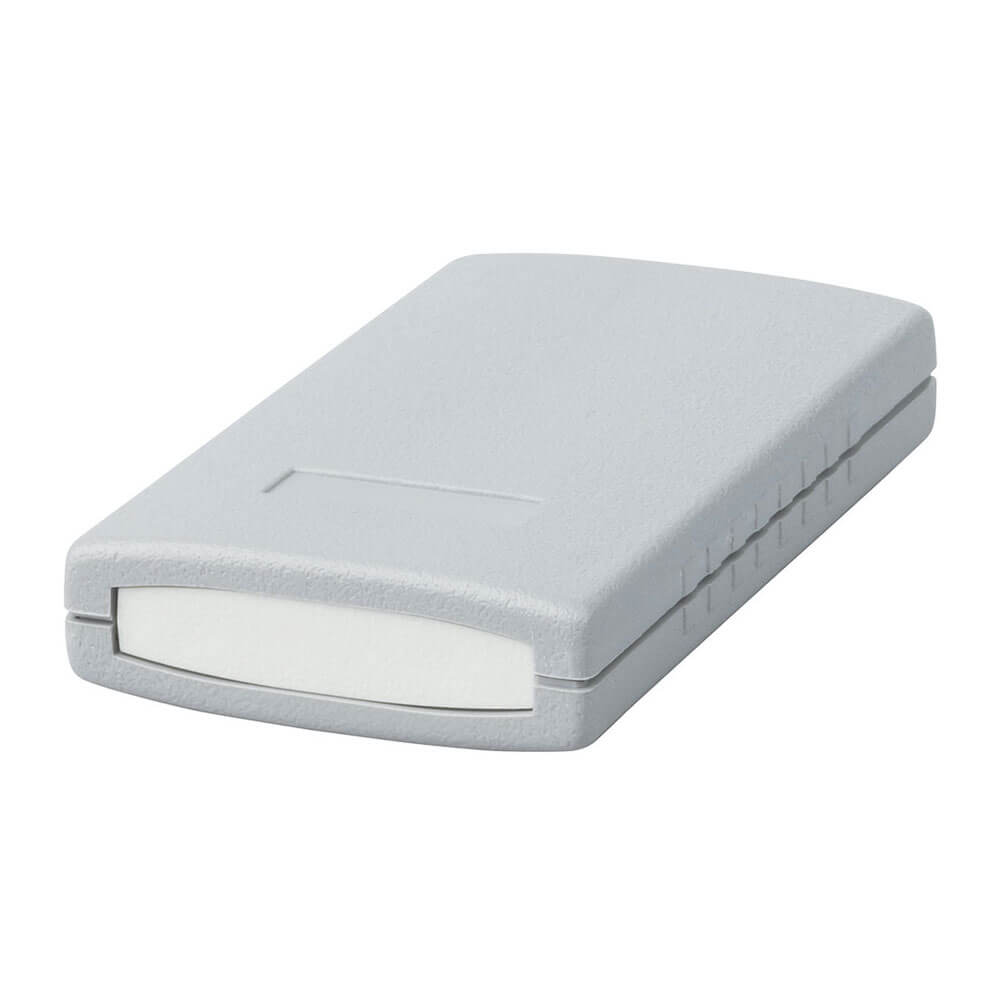

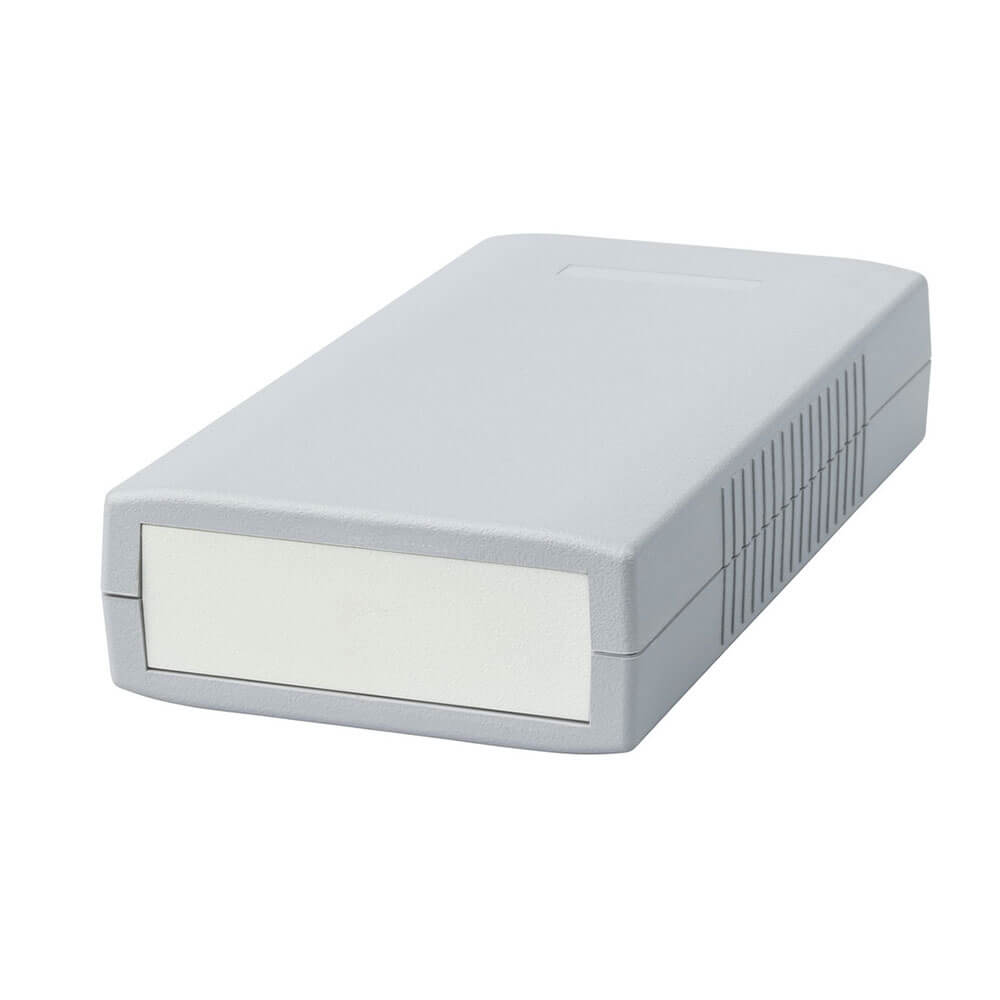

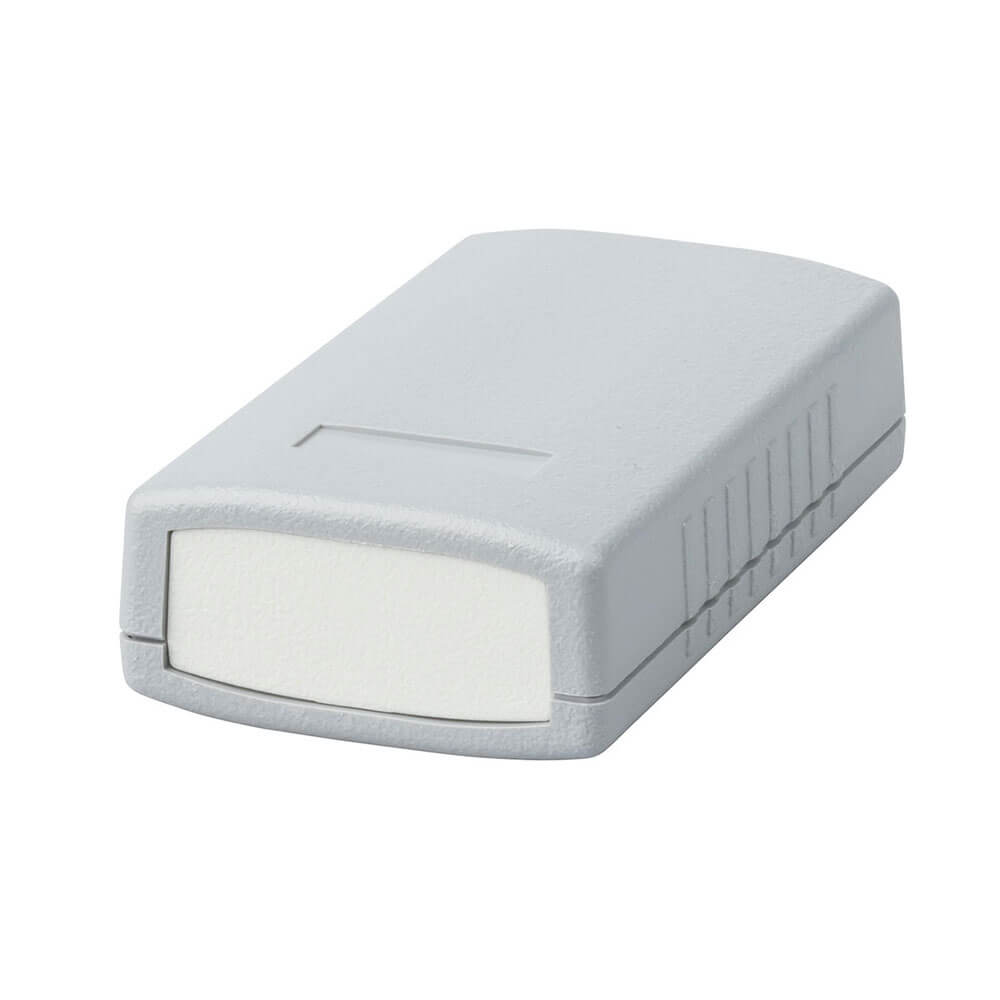

Plastic Molded Enclosure (Dark Grey)

These are available in 2 different materials. High impact ABS with the base and lid moulded in light grey with dark grey end panels

Product Specifications

• High impact ABS with the base and lid moulded in light grey with dark grey end panels
• Flame retardent ABS to UL- 94 VO
• Ideally suited for instrumentation and telecommunication equipment from hand held to lab and desk top
• These cases have a two part design with a tongue and groove joint between the top and bottom of the case, with specially designed end panels of the same material.
• Optional aluminium end panels are available on quantity orders
• The top & bottom is lightly textured which gives a non scratch surface & maintains the high quality finish
• There are guide slots provided for vertical mounting of PCBs
• Bosses are provided for the horizontal mounting of PCBs
• Four M- 3 screws hold the case together

• Length : 12 cm
• Width : 6 cm
• Height : 3 cm
