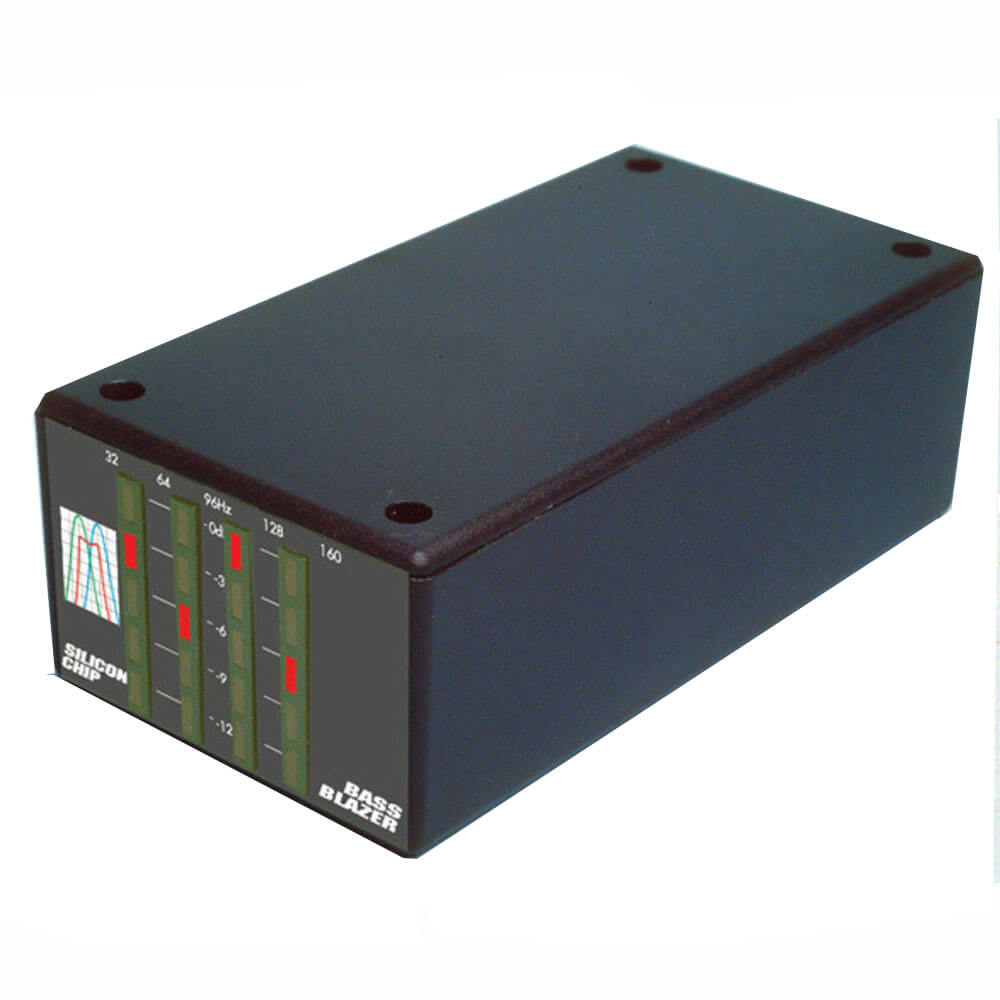

Bass Blazer Bar Graph Display Kit

In arretrato

LatestBuySKU: 51381

The unit covers 2 1/2 octaves in 4 separate bands 32-64Hz, 64-96Hz, 96-128Hz, and 128-160Hz.
The bar graphs cover a range of 15db in 5 x 3db steps.
The kit is supplied with a silk screened case, PCBs and all electronic components.

Price:

€30,95 EUR

Stock:

Sold out

Quantity:

Share this product

Ref Silicon Chip Feb 2001 If you're a bass fiend you'll love this little bass frequency display. The kit operates from 12VDC so it will be equally at home in either in your car or monitoring your home theatre/Hi-Fi system. This kit uses four red vertical LED bar graphs to indicate the level of bass output from your speakers so that you can set your bass signals properly.

Product Specifications

The unit covers 2 1/2 octaves in 4 separate bands 32-64Hz, 64-96Hz, 96-128Hz, and 128-160Hz.
The bar graphs cover a range of 15db in 5 x 3db steps.
The kit is supplied with a silk screened case, PCBs and all electronic components.

Length : 30 cm
Width : 13 cm
Height : 4.5 cm
